怎么，你還沒學Python嗎? 此一時彼以時，什么C，JAVA，現在在求職市場都是渣渣，鋪天蓋地的Python學習廣告，一遍又一遍地提醒著著我，你已經老了:
所以，為了不被時代滾滾洪流淘汰，爭取抓上時代前進的末班車，我也要學Python了，從最實用的-文案（吹）PPT（牛逼）做起。
Python存在不同版本之間的兼容性問題，所以有必要說明一下版本，這里我在Ubuntu系統上使用Python3為例，如果你的系統不是Python3.請按照如下步驟修改：

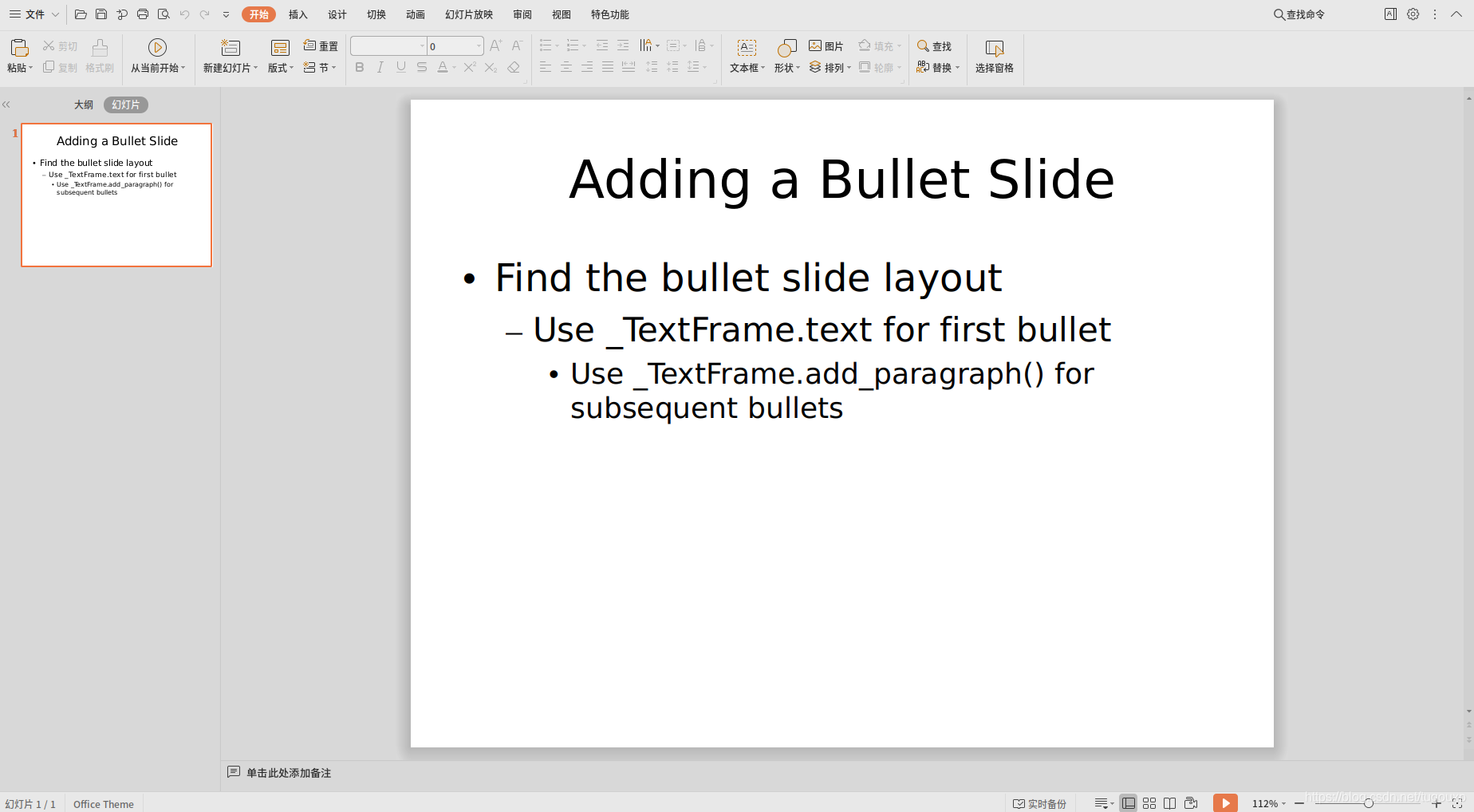

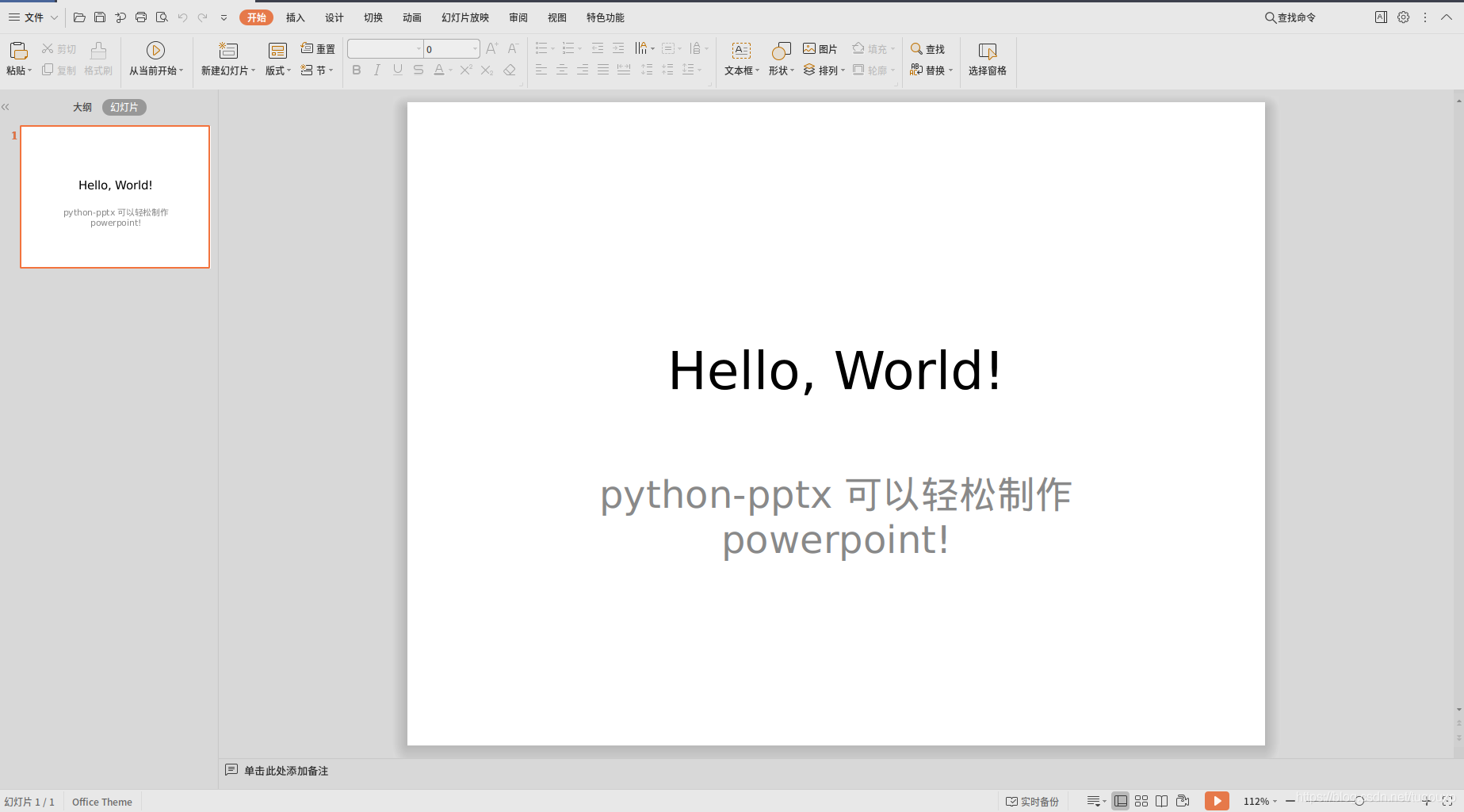

用WPS打開czl.pptx.
import matplotlib.pyplot as plt
import numpy as np
import matplotlib.patches as mpatches
plt.subplots_adjust(left=0.00, bottom=0.0, right=1.00, top=0.95, wspace=0.0, hspace=0.00)
def hexagon_with_text(ax,x,y,text,size,**kwargs):
xy=np.array([x,y])
hexagon = mpatches.RegularPolygon(xy, 6, radius=size,facecolor='#5472bb',edgecolor='#3f597c', orientation=np.pi / 2)
ax.add_patch(hexagon)
ax.text(xy[0],xy[1],text,fontsize=size*14,color='white',va='center',ha='center')
def circle_with_text(ax,x,y,text,size,**kwargs):
xy=np.array([x,y])
circle = mpatches.Circle(xy, radius=size,facecolor='#83aa51',edgecolor='#546538')
ax.add_patch(circle)
ax.text(xy[0],xy[1],text,fontsize=size*14,color='white',va='center',ha='center')
def arrow(ax,x,y,size,**kwargs):
ax.plot(x,y,**kwargs)
theta=np.arctan2(x[1]-x[0],y[1]-y[0])
xy=np.array([x[1]-size*np.sin(theta),y[1]-size*np.cos(theta)])
triangle = mpatches.RegularPolygon(xy, 3, radius=size,color=kwargs['color'], orientation=-theta)
ax.add_patch(triangle)
def arrow_with_rad(ax,x,y,radius,size,**kwargs):
d=np.sqrt((x[1]-x[0])**2+(y[1]-y[0])**2)
theta=np.arctan2(x[1]-x[0],y[0]-y[1])
x0=(x[0]+x[1])/2+np.cos(theta)*np.sqrt(radius**2-(d/2)**2)
y0=(y[0]+y[1])/2+np.sin(theta)*np.sqrt(radius**2-(d/2)**2)
theta1=np.arctan2(y[0]-y0,x[0]-x0)
theta2=np.arctan2(y[1]-y0,x[1]-x0)
arc_x = []
arc_y = []
for theta in np.arange(theta1,theta2+(np.pi*2),np.pi/180):
temp_x=x0 + radius * np.cos(theta)
temp_y=y0 + radius * np.sin(theta)
if((temp_x-x[0])**2+(temp_y-y[0])**2>1 and (temp_x-x[1])**2+(temp_y-y[1])**2>1):
arc_x.append(temp_x)
arc_y.append(temp_y)
ax.plot(arc_x,arc_y,**kwargs)
theta=np.arctan2(arc_y[-2]-arc_y[-1],arc_x[-2]-arc_x[-1])
xy=np.array([arc_x[-1]+size*np.cos(theta),arc_y[-1]+size*np.sin(theta)])
triangle = mpatches.RegularPolygon(xy, 3, radius=size,color=kwargs['color'], orientation=np.pi/2+theta)
ax.add_patch(triangle)

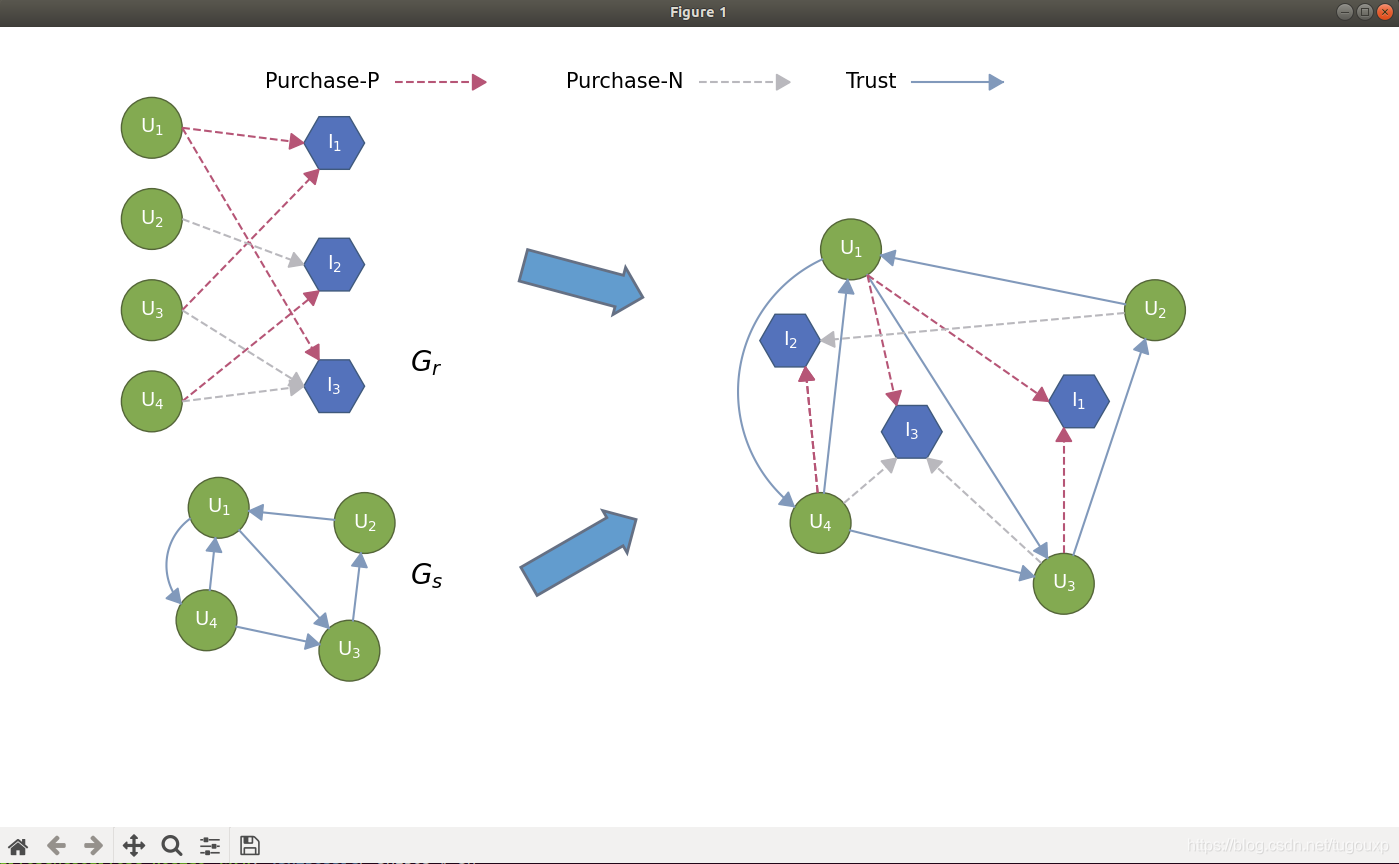

ax=plt.subplot(1,1,1,aspect='equal')
ax.axis('off')
circle_with_text(ax,2,23,'$\mathrm{U_{1}}$',1)
circle_with_text(ax,2,20,'$\mathrm{U_{2}}$',1)
circle_with_text(ax,2,17,'$\mathrm{U_{3}}$',1)
circle_with_text(ax,2,14,'$\mathrm{U_{4}}$',1)
hexagon_with_text(ax,8,22.5,'$\mathrm{I_{1}}$',1)
hexagon_with_text(ax,8,18.5,'$\mathrm{I_{2}}$',1)
hexagon_with_text(ax,8,14.5,'$\mathrm{I_{3}}$',1)
arrow(ax,[3,8+np.cos(np.pi*3/3)],[23,22.5+np.sin(np.pi*3/3)],0.3,color='#b65576',linestyle='--')
arrow(ax,[3,8+np.cos(np.pi*2/3)],[23,14.5+np.sin(np.pi*2/3)],0.3,color='#b65576',linestyle='--')
arrow(ax,[3,8+np.cos(np.pi*4/3)],[17,22.5+np.sin(np.pi*4/3)],0.3,color='#b65576',linestyle='--')
arrow(ax,[3,8+np.cos(np.pi*4/3)],[14,18.5+np.sin(np.pi*4/3)],0.3,color='#b65576',linestyle='--')
arrow(ax,[3,8+np.cos(np.pi*3/3)],[20,18.5+np.sin(np.pi*3/3)],0.3,color='#b9b8bd',linestyle='--')
arrow(ax,[3,8+np.cos(np.pi*3/3)],[17,14.5+np.sin(np.pi*3/3)],0.3,color='#b9b8bd',linestyle='--')
arrow(ax,[3,8+np.cos(np.pi*3/3)],[14,14.5+np.sin(np.pi*3/3)],0.3,color='#b9b8bd',linestyle='--')
ax.text(10.5,15,'${G_{r}}$',fontsize=20)
circle_with_text(ax,4.2,10.5,'$\mathrm{U_{1}}$',1)
circle_with_text(ax,9.0,10.0,'$\mathrm{U_{2}}$',1)
circle_with_text(ax,8.5,5.8,'$\mathrm{U_{3}}$',1)
circle_with_text(ax,3.8,6.8,'$\mathrm{U_{4}}$',1)
theta=-np.pi/2-np.arctan2(9.0-4.2,10.0-10.5)
arrow(ax,[9.0+np.cos(theta),4.2-np.cos(theta)],[10.0+np.sin(theta),10.5-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(8.5-9.0,5.8-10.0)
arrow(ax,[8.5+np.cos(theta),9.0-np.cos(theta)],[5.8+np.sin(theta),10.0-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(3.8-4.2,6.8-10.5)
arrow(ax,[3.8+np.cos(theta),4.2-np.cos(theta)],[6.8+np.sin(theta),10.5-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(3.8-8.5,6.8-5.8)
arrow(ax,[3.8+np.cos(theta),8.5-np.cos(theta)],[6.8+np.sin(theta),5.8-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(4.2-8.5,10.5-5.8)
arrow(ax,[4.2+np.cos(theta),8.5-np.cos(theta)],[10.5+np.sin(theta),5.8-np.sin(theta)],0.3,color='#8199bb')
arrow_with_rad(ax,[4.2,3.8],[10.5,6.8],1.9,0.3,color='#8199bb')
ax.text(10.5,8,r'${G_s}$',fontsize=20)
circle_with_text(ax,25.0,19.0,'$\mathrm{U_{1}}$',1)
circle_with_text(ax,35.0,17.0,'$\mathrm{U_{2}}$',1)
circle_with_text(ax,32.0,8.0,'$\mathrm{U_{3}}$',1)
circle_with_text(ax,24.0,10.0,'$\mathrm{U_{4}}$',1)
hexagon_with_text(ax,32.5,14.0,'$\mathrm{I_{1}}$',1)
hexagon_with_text(ax,23.0,16.0,'$\mathrm{I_{2}}$',1)
hexagon_with_text(ax,27.0,13.0,'$\mathrm{I_{3}}$',1)
theta=-np.pi/2-np.arctan2(35.0-25.0,17.0-19.0)
arrow(ax,[35.0+np.cos(theta),25.0-np.cos(theta)],[17.0+np.sin(theta),19.0-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(24.0-25.0,10.0-19.0)
arrow(ax,[24.0+np.cos(theta),25.0-np.cos(theta)],[10.0+np.sin(theta),19.0-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(24.0-32.0,10.0-8.0)
arrow(ax,[24.0+np.cos(theta),32.0-np.cos(theta)],[10.0+np.sin(theta),8.0-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(32.0-35.0,8.0-17.0)
arrow(ax,[32.0+np.cos(theta),35.0-np.cos(theta)],[8.0+np.sin(theta),17.0-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(25.0-32.0,19.0-8.0)
arrow(ax,[25.0+np.cos(theta),32.0-np.cos(theta)],[19.0+np.sin(theta),8.0-np.sin(theta)],0.3,color='#8199bb')
theta=-np.pi/2-np.arctan2(24.0-23-np.cos(np.pi*5/3),10.0-16.0-np.sin(np.pi*5/3))
arrow(ax,[24.0+np.cos(theta),23.0+np.cos(np.pi*5/3)],[10.0+np.sin(theta),16.0+np.sin(np.pi*5/3)],0.3,color='#b65576',linestyle='--')
theta=-np.pi/2-np.arctan2(32.0-32.5-np.cos(np.pi*4/3),8.0-14.0-np.sin(np.pi*4/3))
arrow(ax,[32.0+np.cos(theta),32.5+np.cos(np.pi*4/3)],[8.0+np.sin(theta),14.0+np.sin(np.pi*4/3)],0.3,color='#b65576',linestyle='--')
theta=-np.pi/2-np.arctan2(25.0-32.0-np.cos(np.pi*2/3),19.0-8.0-np.sin(np.pi*2/3))
arrow(ax,[25.0+np.cos(theta),27.0+np.cos(np.pi*2/3)],[19.0+np.sin(theta),13.0+np.sin(np.pi*2/3)],0.3,color='#b65576',linestyle='--')
arrow(ax,[25.0+np.cos(theta),32.5+np.cos(np.pi*3/3)],[19.0+np.sin(theta),14.0+np.sin(np.pi*3/3)],0.3,color='#b65576',linestyle='--')
theta=-np.pi/2-np.arctan2(24.0-23-np.cos(np.pi*5/3),10.0-16.0-np.sin(np.pi*5/3))
arrow(ax,[24.0+np.cos(theta),23.0+np.cos(np.pi*5/3)],[10.0+np.sin(theta),16.0+np.sin(np.pi*5/3)],0.3,color='#b65576',linestyle='--')
theta=-np.pi/2-np.arctan2(35.0-23-np.cos(np.pi*0/3),17.0-16.0-np.sin(np.pi*0/3))
arrow(ax,[35.0+np.cos(theta),23.0+np.cos(np.pi*0/3)],[17.0+np.sin(theta),16.0+np.sin(np.pi*0/3)],0.3,color='#b9b8bd',linestyle='--')
theta=-np.pi/2-np.arctan2(24.0-27-np.cos(np.pi*4/3),10.0-13.0-np.sin(np.pi*4/3))
arrow(ax,[24.0+np.cos(theta),27.0+np.cos(np.pi*4/3)],[10.0+np.sin(theta),13.0+np.sin(np.pi*4/3)],0.3,color='#b9b8bd',linestyle='--')
theta=-np.pi/2-np.arctan2(32.0-27-np.cos(np.pi*5/3),8.0-13.0-np.sin(np.pi*5/3))
arrow(ax,[32.0+np.cos(theta),27.0+np.cos(np.pi*5/3)],[8.0+np.sin(theta),13.0+np.sin(np.pi*5/3)],0.3,color='#b9b8bd',linestyle='--')
arrow_with_rad(ax,[25,24],[19,10],4.8,0.3,color='#8199bb')
bbox_props = dict(boxstyle="rarrow,pad=0.3", fc="#629cce", ec="#657084", lw=2)
ax.text(16, 18, " "*15, ha="center", va="center", rotation=345,
size=15,
bbox=bbox_props)
ax.text(16, 9, " "*15, ha="center", va="center", rotation=30,
size=15,
bbox=bbox_props)
arrow(ax,[10,13],[24.5,24.5],0.3,color='#b65576',linestyle='--')
arrow(ax,[20,23],[24.5,24.5],0.3,color='#b9b8bd',linestyle='--')
arrow(ax,[27,30],[24.5,24.5],0.3,color='#8199bb')
ax.text(9.5,24.5,'Purchase-P',fontsize=15,va='center',ha='right')
ax.text(19.5,24.5,'Purchase-N',fontsize=15,va='center',ha='right')
ax.text(26.5,24.5,'Trust',fontsize=15,va='center',ha='right')
fig=plt.gcf()
fig.set_size_inches(14, 8)
ax.set_xlim(0,40)
ax.set_ylim(0,25)
plt.show()
import numpy as np
import matplotlib.pyplot as plt
import matplotlib
# matplotlib.rcParams['font.family'] = 'SimHei'
size = 31
#a = np.random.random(size)
#b = np.random.random(size)
#c = np.random.random(size)
a=[9.30,16.34,9.68,16.96,12.19,9.58,5.65,4.89,7.37,8.44,15.64,14.04,13.30,1.97,34.28,55.18,41.80,53.95,38.84,196.85,450.36,81.79,127.43,46.91,71.44,27.21,36.85,78.30,49.91,66.96, 12.82]
b=[9.81,17.11,10.14,17.32,12.45,9.79,5.88,4.95,7.55,8.50,15.72,14.12,13.38,2.19,34.60,55.86,42.37,54.20,40.75,199.53,453.62,82.92,129.45,47.41,71.99,27.51,38.16,80.26,51.22,67.78,13.05]
c=[10.36,17.89,10.90,17.95,12.66,9.96,6.27,5.08,7.72,8.57,15.86,14.25,13.45,2.49,35.10,56.48,43.28,54.31,45.25,202.48,457.89,84.69,134.42,48.25,73.19,28.00,41.69,82.51,54.61,69.62,13.19]
x = np.arange(size)
total_width, n = 0.8, 3
width = total_width / n
str1 = ("squeezenet", "squeezenet_int8", "mobilenet", "mobilenet_int8", "mobilenet_v2", "mobilenet_v3", "shufflenet", "shufflenet_v2", "mnasnet", "proxylessnasnet", "efficientnet_b0", "efficientnetv2_b0", "regnety_400m", "blazeface", "googlenet", "googlenet_int8", "resnet18", "resnet18_int8", "alexnet", "vgg16", "vgg16_int8", "resnet50","resnet50_int8", "squeezenet_ssd","squeezenet_ssd_int8", "mobilenet_ssd","mobilenet_ssd_int8", "mobilenet_yolo", "mobilenetv2_yolov3","yolov4-tiny", "nanodet_m")
x = x - (total_width - width) / 2
#plt.bar(x, a, width=width, label='min',tick_label=str1)
#plt.bar(x+width, b, width=width, label='avg', tick_label=str1)
#plt.bar(x+2*width, c, width=width, label='max',tick_label=str1)
plt.bar(x, a, width=width, label='min')
plt.bar(x+width, b, width=width, label='avg')
plt.bar(x+2*width, c, width=width, label='max')
#for a, b in zip(x, b):
# plt.text(a, b + 0.05, '%.0f' % b, ha='center', va='bottom', fontsize=10)
plt.legend()
plt.show()
到此這篇關于利用Python制作PPT的文章就介紹到這了,更多相關Python制作PPT內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
